deckglgeoarrow

About

Easy and efficient rendering of very large geospatial data in the browser.

deckglgeoarrow provides functionality to efficiently visualise potentially very large geospatial data as Deck.gl layers on top of a maplibre/mapbox map created with package mapgl.

For very quick and efficient data transfer from R memory to the browser, geoarrowWidget is used. Layer creation is done in ‘JavaScript’ using geoarrow/deck.gl-geoarrow (see Features section for details on how and why layer creation is efficient).

Features

Currently, (MULTI)POINT, (MULTI)LINESTRING and (MULTI)POLYGON features are supported by the following layer functions:

• addGeoarrowScatterplotLayer for point data
• addGeoarrowPathLayer for linestring data
• addGeoarrowPolygonLayer for polygon data

Support for other layers, such as discrete global grid layers (S2, A5, H3), origin-destination layers (Arc, trips) and point-cloud layers, among others, will follow.

Supported data sources

R

Spatial classes from the following R packages are supported (via data argument):

• wk
• sf

Others

The following local or remotely hosted files types are supported (via file/url argument):

• GeoArrow
• GeoParquet

In addition, nanoarrow array_streams (as files) are supported.

Installation

The development version of deckglgeoarrow can be installed from GitHub with:

# install.packages("pak")
pak::pak("r-spatial/deckglgeoarrow")

Example

To showcase what the package can do, consider this example.

Here, we visualise

• 1M random points with random sizes and colors +
• ~11k polygons colored by river basin +
• ~155k lines colored and sized according to their Strahler number

in one map.

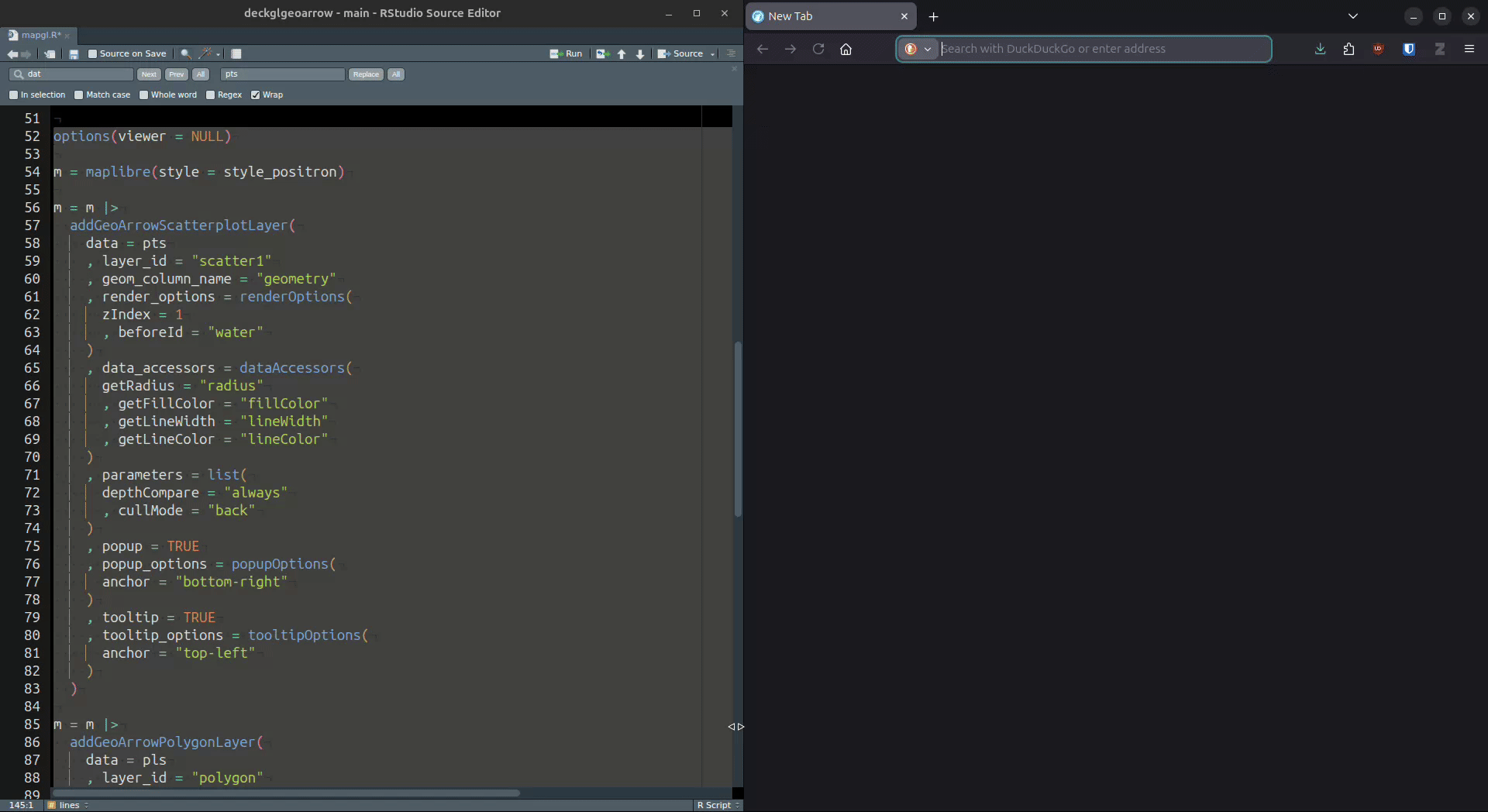

Here’s how quickly this renders:

More examples can be found here

Acknowledgment

This project has been realized with financial support from the
